Chapter 6: Variables and constants

Outline of this chapter

Ruby variables

In Ruby there are quite a lot of different types of variables and constants. Let’s line them up, starting from the largest scope.

Instance variables were already explained in chapter 2 “Objects”. In this chapter we’ll talk about:

We will talk about local variables in the third part of the book.

API for variables

The object of this chapter’s analysis is variable.c. Let’s first look at the available API.

VALUE rb_iv_get(VALUE obj, char *name)
VALUE rb_ivar_get(VALUE obj, ID name)
VALUE rb_iv_set(VALUE obj, char *name, VALUE val)
VALUE rb_ivar_set(VALUE obj, ID name, VALUE val)

We’ve already spoken about those functions, but must mention them again as they are in variable.c. They are of course used for accessing instance variables.

VALUE rb_cv_get(VALUE klass, char *name)
VALUE rb_cvar_get(VALUE klass, ID name)
VALUE rb_cv_set(VALUE klass, char *name, VALUE val)
VALUE rb_cvar_set(VALUE klass, ID name, VALUE val)

These functions are the API for accessing class variables. Class variables belong directly to classes so the functions take a class as parameter. There are in two groups, depending if their name starts with rb_Xv or rb_Xvar. The difference lies in the type of the variable “name”. The ones with a shorter name are generally easier to use because they take a char*. The ones with a longer name are more for internal use as they take a ID.

VALUE rb_const_get(VALUE klass, ID name)
VALUE rb_const_get_at(VALUE klass, ID name)
VALUE rb_const_set(VALUE klass, ID name, VALUE val)

These functions are for accessing constants. Constants also belong to classes so they take classes as parameter. rb_const_get() follows the superclass chain, whereas rb_const_get_at() does not (it just looks in klass).

struct global_entry *rb_global_entry(ID name)
VALUE rb_gv_get(char *name)
VALUE rb_gvar_get(struct global_entry *ent)
VALUE rb_gv_set(char *name, VALUE val)
VALUE rb_gvar_set(struct global_entry *ent, VALUE val)

These last functions are for accessing global variables. They are a little different from the others due to the use of struct global_entry. We’ll explain this while describing the implementation.

Important points

The most important topic of this chapter is “Where and how are variables stored?”, in other words: data structures.

The second most important matter is how we search for the values. The scopes of Ruby variables and constants are quite complicated because variables and constants are sometimes inherited, sometimes looked for outside of the local scope… To have a better understanding, you should first try to guess from the behavior how it could be implemented, then compare that with what is really done.

Class variables

Class variables are variables that belong to classes. In Java or C++ they are called static variables. They can be accessed from both the class or its instances. But “from an instance” or “from the class” is information only available in the evaluator, and we do not have one for the moment. So from the C level it’s like having no access range. We’ll just focus on the way these variables are stored.

Reading

The functions to get a class variable are rb_cvar_get() and rb_cv_get(). The function with the longer name takes ID as parameter and the one with the shorter one takes char*. Because the one taking an ID seems closer to the internals, we’ll look at it.

rb_cvar_get()
1508  VALUE
1509  rb_cvar_get(klass, id)
1510      VALUE klass;
1511      ID id;
1512  {
1513      VALUE value;
1514      VALUE tmp;
1515
1516      tmp = klass;
1517      while (tmp) {
1518          if (RCLASS(tmp)->iv_tbl) {
1519              if (st_lookup(RCLASS(tmp)->iv_tbl,id,&value)) {
1520                  if (RTEST(ruby_verbose)) {
1521                      cvar_override_check(id, tmp);
1522                  }
1523                  return value;
1524              }
1525          }
1526          tmp = RCLASS(tmp)->super;
1527      }
1528
1529      rb_name_error(id,"uninitialized class variable %s in %s",
1530                    rb_id2name(id), rb_class2name(klass));
1531      return Qnil;                /* not reached */
1532  }

(variable.c)

This function reads a class variable in klass.

Error management functions like rb_raise() can be simply ignored like I said before. The rb_name_error() that appears this time is a function for raising an exception, so it can be ignored for the same reasons. In ruby, you can assume that all functions ending with _error raise an exception.

After removing all this, we can see that while following the klass’s superclass chain we only search in iv_tbl. At this point you should say “What? iv_tbl is the instance variables table, isn’t it?” As a matter of fact, class variables are stored in the instance variable table.

We can do this because when creating IDs, the whole name of the variables is taken into account, including the prefix: rb_intern() will return different IDs for “@var” and “@@var”. At the Ruby level, the variable type is determined only by the prefix so there’s no way to access a class variable called @var from Ruby.

Constants

It’s a little abrupt but I’d like you to remember the members of struct RClass. If we exclude the basic member, struct RClass contains:

Then, considering that:

  1. constants belong to a class
  2. we can’t see any table dedicated to constants in struct RClass
  3. class variables and instance variables are both in iv_tbl

Could it mean that the constants are also…

Assignment

rb_const_set() is a function to set the value of constants: it sets the constant id in the class klass to the value val.

rb_const_set()
1377  void
1378  rb_const_set(klass, id, val)
1379      VALUE klass;
1380      ID id;
1381      VALUE val;
1382  {
1383      mod_av_set(klass, id, val, Qtrue);
1384  }

(variable.c)

mod_av_set() does all the hard work:

mod_av_set()
1352  static void
1353  mod_av_set(klass, id, val, isconst)
1354      VALUE klass;
1355      ID id;
1356      VALUE val;
1357      int isconst;
1358  {
1359      char *dest = isconst ? "constant" : "class variable";
1360
1361      if (!OBJ_TAINTED(klass) && rb_safe_level() >= 4)
1362          rb_raise(rb_eSecurityError, "Insecure: can't set %s", dest);
1363      if (OBJ_FROZEN(klass)) rb_error_frozen("class/module");
1364      if (!RCLASS(klass)->iv_tbl) {
1365          RCLASS(klass)->iv_tbl = st_init_numtable();
1366      }
1367      else if (isconst) {
1368          if (st_lookup(RCLASS(klass)->iv_tbl, id, 0) ||
1369              (klass == rb_cObject && st_lookup(rb_class_tbl, id, 0))) {
1370              rb_warn("already initialized %s %s", dest, rb_id2name(id));
1371          }
1372      }
1373
1374      st_insert(RCLASS(klass)->iv_tbl, id, val);
1375  }

(variable.c)

You can this time again ignore the warning checks (rb_raise(), rb_error_frozen() and rb_warn()). Here’s what’s left:

mod_av_set() (only the important part)
    if (!RCLASS(klass)->iv_tbl) {
        RCLASS(klass)->iv_tbl = st_init_numtable();
    }
    st_insert(RCLASS(klass)->iv_tbl, id, val);

We’re now sure constants also reside in the instance table. It means in the iv_tbl of struct RClass, the following are mixed together:

  1. the class’s own instance variables
  2. class variables
  3. constants

Reading

We now know how the constants are stored. We’ll now check how they really work.

rb_const_get()

We’ll now look at rconst_get(), the function to read a constant. This functions returns the constant referred to by id from the class klass.

rb_const_get()
1156  VALUE
1157  rb_const_get(klass, id)
1158      VALUE klass;
1159      ID id;
1160  {
1161      VALUE value, tmp;
1162      int mod_retry = 0;
1163
1164      tmp = klass;
1165    retry:
1166      while (tmp) {
1167          if (RCLASS(tmp)->iv_tbl &&
                  st_lookup(RCLASS(tmp)->iv_tbl,id,&value)) {
1168              return value;
1169          }
1170          if (tmp == rb_cObject && top_const_get(id, &value))
                  return value;
1171          tmp = RCLASS(tmp)->super;
1172      }
1173      if (!mod_retry && BUILTIN_TYPE(klass) == T_MODULE) {
1174          mod_retry = 1;
1175          tmp = rb_cObject;
1176          goto retry;
1177      }
1178
1179      /* Uninitialized constant */
1180      if (klass && klass != rb_cObject) {
1181          rb_name_error(id, "uninitialized constant %s at %s",
1182                        rb_id2name(id),
1183                        RSTRING(rb_class_path(klass))->ptr);
1184      }
1185      else { /* global_uninitialized */
1186          rb_name_error(id, "uninitialized constant %s",rb_id2name(id));
1187      }
1188      return Qnil;                /* not reached */
1189  }

(variable.c)

There’s a lot of code in the way. First, we should at least remove the rb_name_error() in the second half. In the middle, what’s around mod_entry seems to be a special handling for modules. Let’s also remove that for the time being. The function gets reduced to this:

rb_const_get (simplified)
VALUE
rb_const_get(klass, id)
    VALUE klass;
    ID id;
{
    VALUE value, tmp;

    tmp = klass;
    while (tmp) {
        if (RCLASS(tmp)->iv_tbl && st_lookup(RCLASS(tmp)->iv_tbl,id,&value)) {
            return value;
        }
        if (tmp == rb_cObject && top_const_get(id, &value)) return value;
        tmp = RCLASS(tmp)->super;
    }
}

Now it should be pretty easy to understand. The function searches for the constant in iv_tbl while climbing klass’s superclass chain. That means:

class A
  Const = "ok"
end
class B < A
  p(Const)    # can be accessed
end

The only problem remaining is top_const_get(). This function is only called for rb_cObject so top must mean “top-level”. If you don’t remember, at the top-level, the class is Object. This means the same as “in the class statement defining C, the class becomes C”, meaning that “the top-level’s class is Object”.

# the class of the top-level is Object
class A
  # the class is A
  class B
    # the class is B
  end
end

So top_const_get() probably does something specific to the top level.

top_const_get()

Let’s look at this top_const_get function. It looks up the id constant writes the value in klassp and returns.

top_const_get()
1102  static int
1103  top_const_get(id, klassp)
1104      ID id;
1105      VALUE *klassp;
1106  {
1107      /* pre-defined class */
1108      if (st_lookup(rb_class_tbl, id, klassp)) return Qtrue;
1109
1110      /* autoload */
1111      if (autoload_tbl && st_lookup(autoload_tbl, id, 0)) {
1112          rb_autoload_load(id);
1113          *klassp = rb_const_get(rb_cObject, id);
1114          return Qtrue;
1115      }
1116      return Qfalse;
1117  }

(variable.c)

rb_class_tbl was already mentioned in chapter 4 “Classes and modules”. It’s the table for storing the classes defined at the top-level. Built-in classes like String or Array have for example an entry in it. That’s why we should not forget to search in this table when looking for top-level constants.

The next block is related to autoloading. This allows us to automatically load a library when accessing a top-level constant for the first time. This can be used like this:

autoload(:VeryBigClass, "verybigclass")   # VeryBigClass is defined in it

After this, when VeryBigClass is accessed for the first time, the verybigclass library is loaded (with require). As long as VeryBigClass is defined in the library, execution can continue smoothly. It’s an efficient approach, when a library is too big and a lot of time is spent on loading.

This autoload is processed by rb_autoload_xxxx(). We won’t discuss autoload further in this chapter because there will probably be a big change in how it works soon (The way autoload works did change in 1.8: autoloaded constants do not need to be defined at top-level anymore).

Other classes?

But where did the code for looking up constants in other classes end up? After all, constants are first looked up in the outside classes, then in the superclasses.

In fact, we do not yet have enough knowledge to look at that. The outside classes change depending on the location in the program. In other words it depends of the program context. So we need first to understand how the internal state of the evaluator is handled. Specifically, this search in other classes is done in the ev_const_get() function of eval.c. We’ll look at it and finish with the constants in the third part of the book.

Global variables

General remarks

Global variables can be accessed from anywhere. Or put the other way around, there is no need to restrict access to them. Because they are not attached to any context, the table only has to be at one place, and there’s no need to do any check. Therefore implementation is very simple.

But there is still quite a lot of code. The reason for this is that global variables are quite different from normal variables. Functions like the following are only available for global variables:

Let’s explain this simply.

Aliases of variables

alias $newname $oldname

After this, you can use $newname instead of $oldname. alias for variables is mainly a counter-measure for “symbol variables”. “symbol variables” are variables inherited from Perl like $= or $0. $= decides if during string comparison upper and lower case letters should be differentiated. $0 shows the name of the main Ruby program. There are some other symbol variables but anyway as their name is only one character long, they are difficult to remember for people who don’t know Perl. So, aliases were created to make them a little easier to understand.

That said, currently symbol variables are not recommended, and are moved one by one in singleton methods of suitable modules. The current school of thought is that $= and others will be abolished in 2.0.

Hooks

You can “hook” read and write of global variables.

Hooks can be also be set at the Ruby level, but I was thinking: why not instead look at C level special variables for system use like $KCODE? $KCODE is the variable containing the encoding the interpreter currently uses to handle strings. It can only be set to special values like "EUC" or "UTF8". But this is too bothersome so it can also be set it to "e" or "u".

p($KCODE)      # "NONE" (default)
$KCODE = "e"
p($KCODE)      # "EUC"
$KCODE = "u"
p($KCODE)      # "UTF8"

Knowing that you can hook assignment of global variables, you should understand easily how this can be done. By the way, $KCODE’s K comes from “kanji” (the name of Chinese characters in Japanese).

You might say that even with alias or hooks, global variables just aren’t used much, so it’s functionality that doesn’t really mater. It’s adequate not to talk much about unused functions, and I need some pages for the analysis of the parser and evaluator. That’s why I’ll proceed with the explanation below throwing away what’s not really important.

Data structure

When we were looking at how variables work, I said that the way they are stored is important. That’s why I’d like you to firmly grasp the structure used by global variables.

▼ Data structure for global variables
  21  static st_table *rb_global_tbl;

 334  struct global_entry {
 335      struct global_variable *var;
 336      ID id;
 337  };

 324  struct global_variable {
 325      int   counter;      /* reference counter */
 326      void *data;         /* value of the variable */
 327      VALUE (*getter)();  /* function to get the variable */
 328      void  (*setter)();  /* function to set the variable */
 329      void  (*marker)();  /* function to mark the variable */
 330      int block_trace;
 331      struct trace_var *trace;
 332  };

(variable.c)

rb_global_tbl is the main table. All global variables are stored in this table. The keys of this table are of course variable names (ID). A value is expressed by a struct global_entry and a struct global_variable (figure 1).

Global variables table at execution time
Figure 1: Global variables table at execution time

The structure representing the variables is split in two to be able to create aliases. When an alias is established, two global_entrys point to the same struct global_variable.

It’s at this time that the reference counter (the counter member of struct global_variable) is necessary. I explained the general idea of a reference counter in the previous section “Garbage collection”. Reviewing it briefly, when a new reference to the structure is made, the counter in incremented by 1. When the reference is not used anymore, the counter is decreased by 1. When the counter reaches 0, the structure is no longer useful so free() can be called.

When hooks are set at the Ruby level, a list of struct trace_vars is stored in the trace member of struct global_variable, but I won’t talk about it, and omit struct trace_var.

Reading

You can have a general understanding of global variables just by looking at how they are read. The functions for reading them are rb_gv_get() and rb_gvar_get().

rb_gv_get() rb_gvar_get()
 716  VALUE
 717  rb_gv_get(name)
 718      const char *name;
 719  {
 720      struct global_entry *entry;
 721
 722      entry = rb_global_entry(global_id(name));
 723      return rb_gvar_get(entry);
 724  }

 649  VALUE
 650  rb_gvar_get(entry)
 651      struct global_entry *entry;
 652  {
 653      struct global_variable *var = entry->var;
 654      return (*var->getter)(entry->id, var->data, var);
 655  }

(variable.c)

A substantial part of the content seems to turn around the rb_global_entry() function, but that does not prevent us understanding what’s going on. global_id is a function that converts a char* to ID and checks if it’s the ID of a global variable. (*var->getter)(...) is of course a function call using the function pointer var->getter. If p is a function pointer, (*p)(arg) calls the function.

But the main part is still rb_global_entry().

rb_global_entry()
 351  struct global_entry*
 352  rb_global_entry(id)
 353      ID id;
 354  {
 355      struct global_entry *entry;
 356
 357      if (!st_lookup(rb_global_tbl, id, &entry)) {
 358          struct global_variable *var;
 359          entry = ALLOC(struct global_entry);
 360          st_add_direct(rb_global_tbl, id, entry);
 361          var = ALLOC(struct global_variable);
 362          entry->id = id;
 363          entry->var = var;
 364          var->counter = 1;
 365          var->data = 0;
 366          var->getter = undef_getter;
 367          var->setter = undef_setter;
 368          var->marker = undef_marker;
 369
 370          var->block_trace = 0;
 371          var->trace = 0;
 372      }
 373      return entry;
 374  }

(variable.c)

The main treatment is only done by the st_lookup() at the beginning. What’s done afterwards is just creating (and storing) a new entry. As, when accessing a non existing global variable, an entry is automatically created, rb_global_entry() will never return NULL.

This was mainly done for speed. When the parser finds a global variable, it gets the corresponding struct global_entry. When reading the value of the variable, the parser just has to get the value from the entry (using rb_gv_get()), and has no need to do any check.

Let’s now continue a little with the code that follows. var->getter and others are set to undef_xxxx. undef means that the global setter/getter/marker for the variable are currently undefined.

undef_getter() just shows a warning and returns nil, as even undefined global variables can be read. undef_setter() is quite interesting so let’s look at it.

undef_setter()
 385  static void
 386  undef_setter(val, id, data, var)
 387      VALUE val;
 388      ID id;
 389      void *data;
 390      struct global_variable *var;
 391  {
 392      var->getter = val_getter;
 393      var->setter = val_setter;
 394      var->marker = val_marker;
 395
 396      var->data = (void*)val;
 397  }

(variable.c)

val_getter() takes the value from entry->data and returns it. val_getter() just puts a value in entry->data. Setting handlers this way allows us not to need special handling for undefined variables (figure 2). Skillfully done, isn’t it?

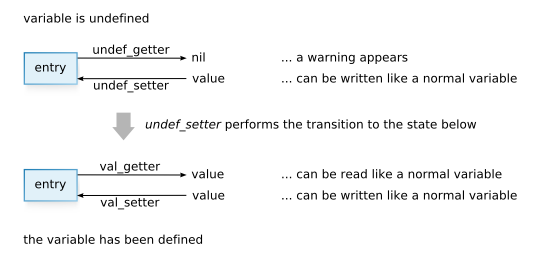

Setting and consultation of global variables
Figure 2: Setting and consultation of global variables


The original work is Copyright © 2002 - 2004 Minero AOKI.
Translated by Vincent ISAMBART
Creative Commons License
This work is licensed under a Creative Commons Attribution-NonCommercial-ShareAlike2.5 License.
